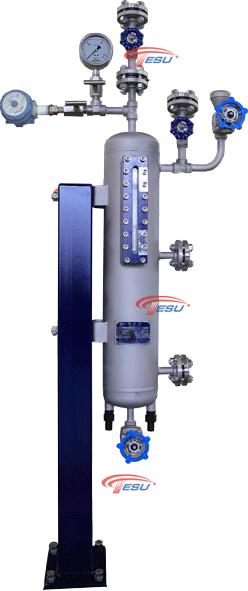

P53A-G27 Type Seal Flush System(side-mounted)

Tesu’s P53A series seal flush system is designed, manufactured, tested and inspected according to G14 type of API 682 standard, also meet the relevant requirement of GB150-2011. This series seal flush system is used to reserved the barrier fluid, educed the heat of seal chamber, and supply the barrier fluid for dual seal. Thus, improve the operating condition of mechanical seal, increase the reliability and life time of mechanical seal, extend the applicable range for seal. G27 type is dual heads that can't take down the coil. The exchanged heat coil is inside in the seal pot; combine with other parts (such as pressure switch/pressure transmitter, lever switch/lever transmitter, temperature gauge, pressure gauge, refill pump/refill car, ect.) can reach a wide range of applications.
System Paramenters
1.Desgin temp. :-19℃～120℃
2.Desgin press. :≤5.0MPa
3.Volume at NLL. :12L/20L(selected according to the shaft diameter of mechine)
System Features
1.Metal Inertia Gas weld process,7.5Mpa Hydrostatic test;
2.Level visual disply from toughened glass of borosilicate;
3.Configuration multiplicity, selectable parts: pressure switch, manual refill pump, lever switch, ect.
