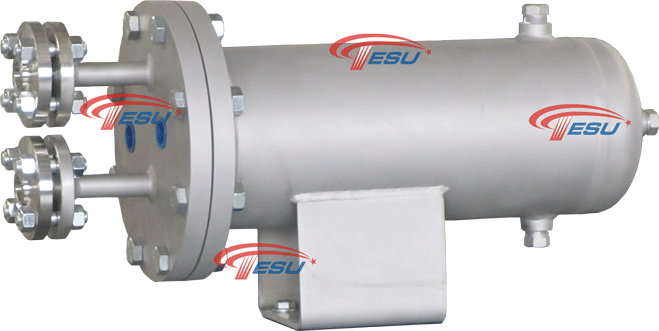

HRG type heat exchanger

HRG type heat exchanger is used for cooling the flush liquid in the mechanical seal circulation to reduce the temperature of mechanical seal operating temperature. There is two installation type (vertical and horizontal) and 8 different models, and meet the requirement of API 682. HRG Type Heat Exchanger is typical coil heat exchanger. Double Coils around a Guide Tube.The flush liquid or barrier liquid through the tube and the cooling water through the shell. Through the valve in shell side, the cooling water can be efficiently drained or vented. Moreover, in accordance with the requirements of API 682 , the exchanger can also be combined with a temperature instrument to monitor the temperature of cooling liquid.This product can be used in Plan21, Plan23 and Plan41.
System Paramenters
1.Working temp.(Tube):0～300℃
2.Working press.Tube):≤5.0MPa
3.Heat exchanger area:0.4㎡/0.6㎡/0.8㎡/1.0㎡
System Features
1.Standard design comply with API682-2004.
2.Installation: Vertical and horizontal are available.
3.Heat exchanger can be dismantled that make cleaning the tubes become easier.
4.The material of the shell and tube is 304/316L stainless steel, that is a material of high corrosion resistance.
